Closing Wheels

• Wheel is bi-directional and 15" in diameter
• Can run as a pair of cast spikes or as one cast spike and one rubber closing wheel
• Improves seed trench closing even in the most severe conditions
• Lifts and fractures soil with exclusive teeth
• Eliminates potential for sidewall compaction
• Wide crowned depth band controls spike depth and prevents seed disturbance

View the 6200 Manual

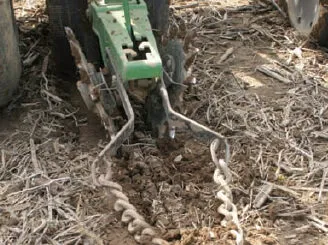

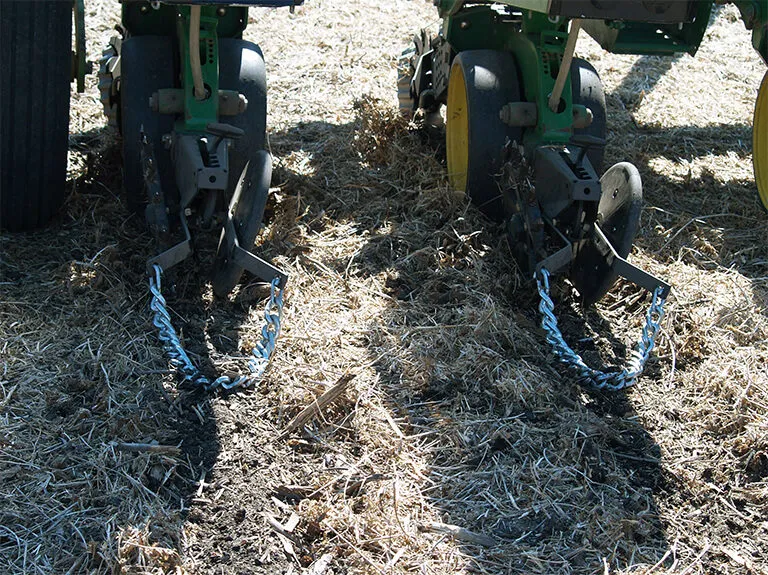

• 5/8" twisted line chain improves seed to soil contact
• Beveled, five-sided links pull more heavy soil onto the trench
• Attaches easily to row unit frame
• Improves stands and yields when coupled with planters applying insecticide

CALL FOR PRICE

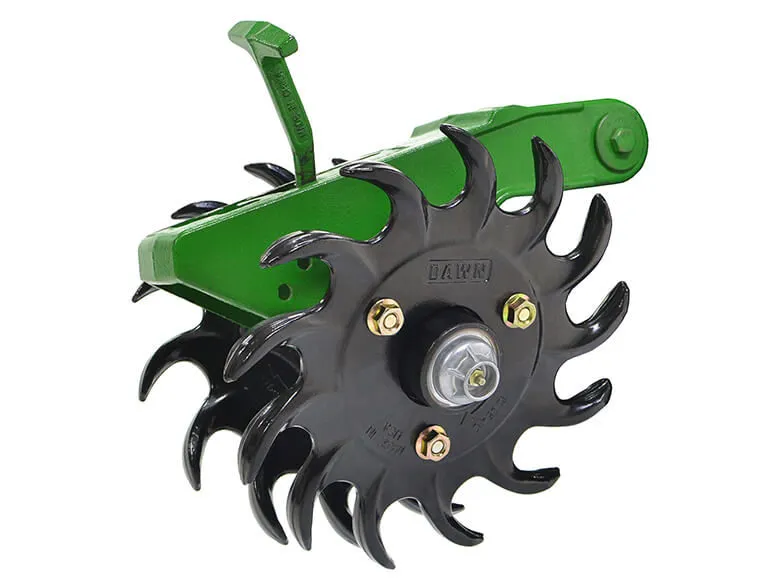

• Curvetine™ M-Series allows you to quickly change from the curved tooth in minimally tilled ground, to heavy-duty rubber in conventionally tilled ground
• They measure 13" in diameter
• Drop-forged and has a lifetime guarantee against bending or breaking
• Fasteners for the wheel are pressed-in to make switching wheels a snap
• Easily switch between two spiked wheels, two rubber wheels, or one of each

View the 1202 Manual

FOR PLANTERS WITH ROLL-PIN ATTACHED HUBS: DEERE 7000 & 7100 SERIES, EARLY KINZE SERIES PLANTERS

• 3/8" thick, 15" diameter right and left toothed steel wheels with diamond shaped points
• Cast hubs
• Adaptor axles
• Two 17mm I.D. bearings

View the 1541 Manual

• For Deere 7200-7300 series planters
• 3/8" thick, 15" diameter right and left toothed steel wheels with diamond shaped points
• Cast hubs
• Two 17mm I.D. bearings

View the 1543 Manual

• For planters with bolt-on hubs: Deere 1700 series, Kinze, plus White 6000 & 8000 series
• 3/8" thick, 15" diameter right and left toothed steel wheels with diamond shaped points
• HU44-B2 cast hubs with long life
• 50mm 5203 bearing

View the 1544 Manual

• Heavy square edge cross chain and brackets
• Bolts to all MaxEmerge units
• Fits Kinze and White units with bolt-on wheels
• Kinze units with roll pin attached closing wheels will need holes drilled for mounting

Furrow Cruiser Complete Assembly (2 Per Row)

With Furrow Cruisers (r) having a wide wheel combined with a spike, we get firming and crumbling on both sides of the seed trench, leading to the best seed depth and most even seed emergence possible. A complete set of wheels offered to replace your existing wheels. The wheel comes assembled with a new hub and bearing.  Will fit planters with a bolt on "V" style closing system. This price is for TWO WHEELS.  Spacing washers and instructions included.

Fits:

• JD 1700, DB and Max Emerge Series
• Kinze 1993 and Newer
• White 6000, 8000 and 9000 Series
• Great Plains
• Monosem
• Horsch
• Case IH SDX No-Till Drills

Furrow Cruiser Insert (2 Per Row)

This is a direct replacement part for the typical rubber tire ring.  Will fit planters with a bolt on "V" style closing system. This price is for TWO INSERTS.  Spacing washers and instructions included.

Fits:

• JD 1700, 72/7300, Bauer Built
• Kinze 1993 and Newer
• White 6000, 8000 and 9000 Series
• Great Plains with regular tire, not wedge wheels.
• Monosem (6 bolt hub pattern)
• Case IH SDX No-Till Drills

Cruiser Xtreme(2 Per Row)

The Furrow Cruiser Xtreme is a cast spiked closing wheel that is made for the toughest of conditions.  The wheel has 14 angular teeth that will break up sidewall compaction and close the furrow.  The extra weight will help the wheel to penetrate tougher field conditions.  The width of the wheel will help with firming of the soil around the seed and will prohibit the wheel from rooster tailing or moving the seed.
